FZR250 3LN & Zeal Carburettor Seals

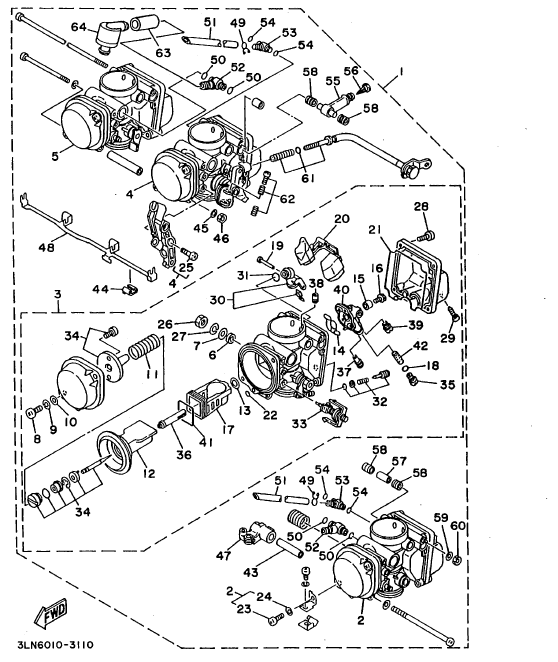

FZR250CarbDiagram


# Part Number Description 3LN1 3LN3 3LN5 3LN6 3LN7 Zeal
13 1AE-14147-00 O-Ring - Slide housing
14 3LF-14147-00 Jet Housing Seal
3LN-14147-00
18 1AE-14227-00 Sq-Ring - Main Jet
21 3GM-14997-00 O-Ring - Float Bowl
22 3FV-14147-00 O-Ring - Top Cap
31 3EN-14147-00 O-Ring - Float Valve Seat
32 12R-14105-00 Pilot Screw Assembly
3LN-14105-00
41 3LN-14561-00 O-Ring - Slide Housing Top
3YX-1416A-00
50 3LC-1416A-00 O-Ring - Breather
3LN-1416A-00
54 822-14147-00 (36Y-14147-00) O-Ring - Float Bowl Vent
58 3EN-14997-00 Fuel Seal
